Conforms to

IS / ISO 7396 - 1 : 2016, HTM 02-01 Part A, IS / ISO IEC 60601 – 1 : 2015 + A1 : 2020

ISO 18082 : 2014 + A1 : 2017

Body

Fire retardant dust-proof CRCA 18 SWG steel enclosure

Finish

Powder coating - Enclosure RAL 7035 grain finish

Mounting type

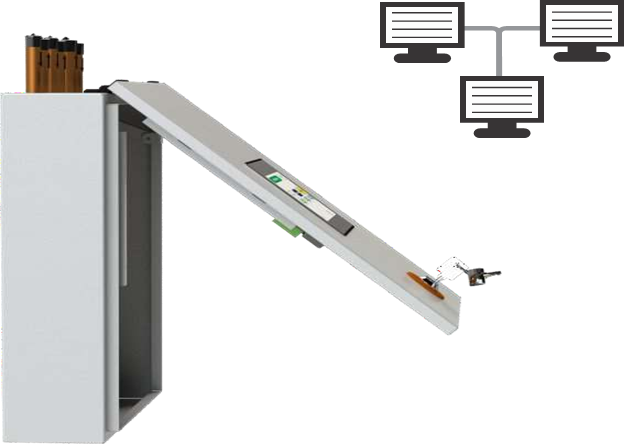

Horizontal - Surface mountable (Cover opens up vertically)

Gas services

(W × H × T in mm)

2 & 3 Gas module

4 Gas module

5 Gas module

6 Gas module

370 × 450 × 115

470 × 450 × 115

570 × 450 × 115

670 × 450 × 115

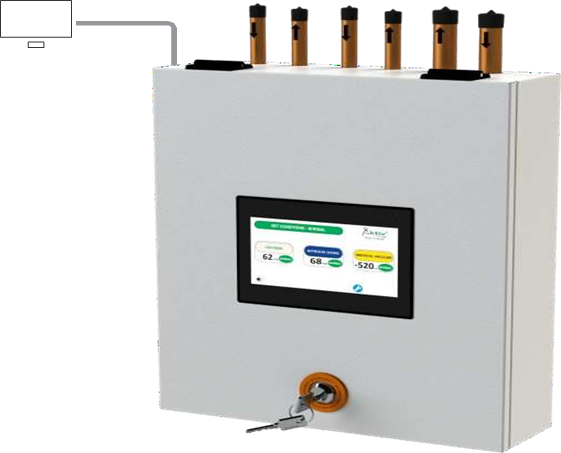

Gas & Vacuum connections

Pre-piped "K" type medical grade Copper extension pipe 125mm long on the top (Riser) for connecting network gas services

Extension pipe size

15 mm dia for Gases & 22 mm dia for Vacuum with laser engraved direction signage

Off-line connection

Gas specific NIST connections with NRV provided for external medical gas supply

Flow through NIST

Emergency/maintenance inlet flow rate of 500 lpm at 4 bar

Shut-off Valve

Full port ball valves (PN 30) with quarter turn (90°) through butterfly knob

Power connection

External 220V AC (50 Hz) to 12V DC adapter for audio visual display

Warning system

Microprocessor based warning module adjustable in-situ to set operational parameters and digital pressure unit in psi / bar or kg/cm2

Display & Audio signal

Digital & illuminated digital display for "Normal", "High" & "Low" with High/low alarm set-

points for each gas (Low only for Vacuum) service

Flashing digital display coupled with audio warning in case of preset deviation with the provision to "Mute" audio signal for 15 minutes max

Minimum size of 20 x 14 mm bright LED signals for clear visibility from distance

Sensors

Fully calibrated and temperature compensated Application Specific Integrated Circuit signal conditioning (in a Brass housing) Pressure Sensors

a.  Total Error Band: ±1.0% FSS (Full Scale Span) from -20 °C to 85 °C [-4 °F to 185 °F]

b.  Sensing pressure span: 60 mbar to 10 bar [1 psi to 150 psi] Digital Output

c.  Temperature span: -30 °C to 50 °C [-22 °F to 122 °F]

Information & Control

The information of alarm, current status & test conditions through “Touch button”

Display & Audio blocker

Provision to block display & audio signal of a particular supply line for long service period is built-in

Valve access

Re-useable lock assembly after breaking lock by hand push to gain access

Earthing

Protective earth

Protection

Class II & IP54

Certifications

ISO 13485:2016 – Medical devices – Quality management systems ISO 9001:2015 - Quality management systems

Pressure Equipment Directive 2014/68/EU
